Product_Spectra SP100

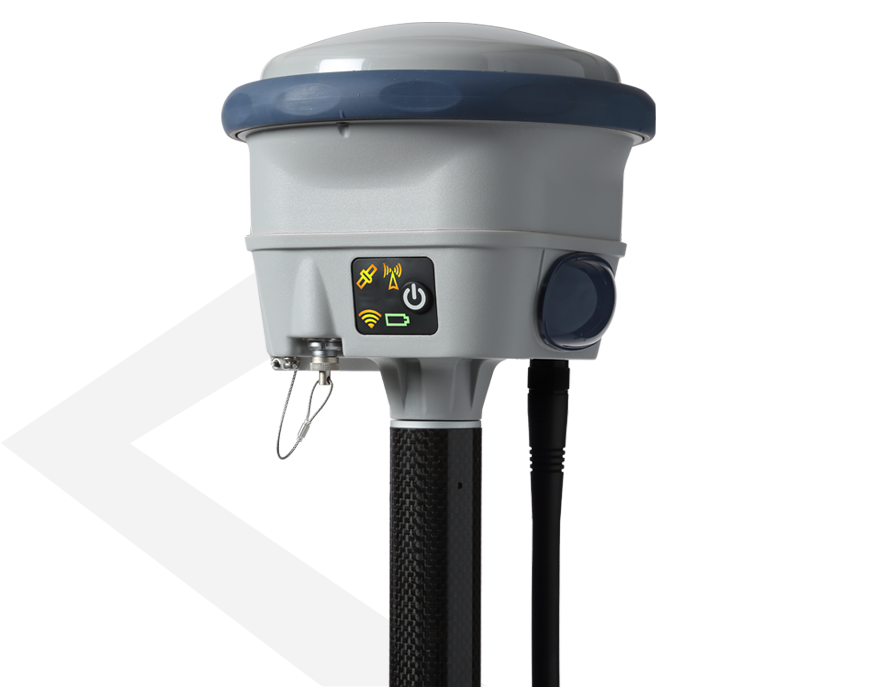

Spectra Geospatial SP100

  • SKU: SP10010150

  • DELIVERING ACCURACY TO DEMANDING SURVEY PROJECTS

    The Spectra Geospatial® SP100 GNSS receiver delivers everything you need for efficient surveying. The SP100 comes with config SP100BRO, making it ideal for a broad range of applications from topographic surveys to engineering layout.

    • Price: $18,000.00

  • Call for Special Pricing

Key Specifications

Positioning Accuracy

Up to 8 mm + 1 ppm RMS

Satellite Tracking

GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS

Update Rate

Up to 20 Hz

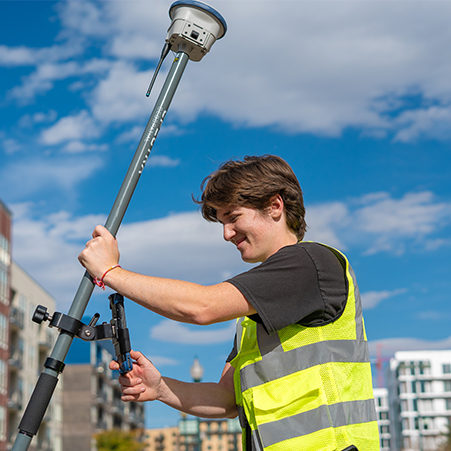

Optimal Productivity & Safety

Optimal Productivity & Safety

Work faster and safer with IMU based tilt compensation that delivers precise positions without leveling. Capture hard to reach points and survey confidently along roadsides.

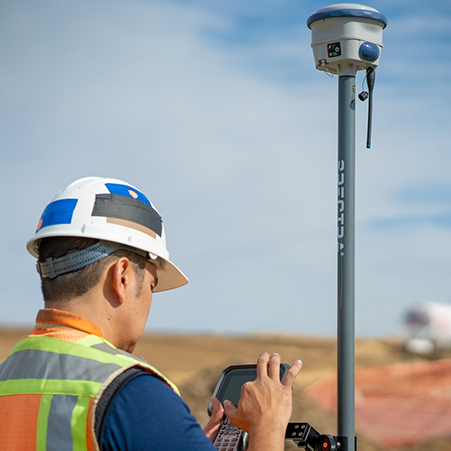

Peak Performance Anywhere

Peak Performance Anywhere

Count on consistent high accuracy in cities, under trees, or remote areas with the Z-Blade GNSS engine, triple-frequency tracking, ionospheric error mitigation, and Trimble CenterPoint® RTX service.

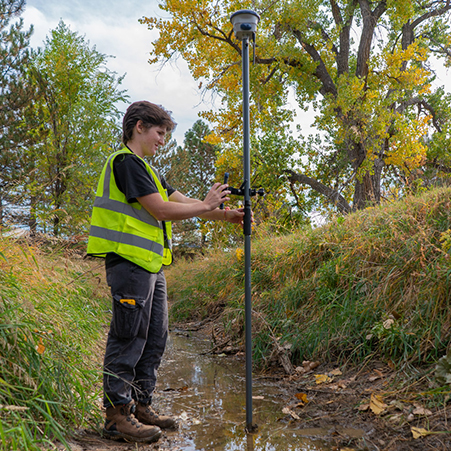

Enhanced Resistance

Enhanced Resistance

The compact, ultra-rugged SP100 thrives in harsh conditions, maintaining reliable performance in dust, rain, wind, salt, and extreme temperatures.

Precision. Speed. Reliability.

Description

A precision tool built for demanding surveying tasks, the SP100 Configuration Level is a specific setup option for the SP100 GNSS receiver, tailored to meet the needs of various surveying applications. Its precise IMU-based tilt compensation accelerates fieldwork, while seamless integration with Origin field software and Survey Office software ensures you can complete any surveying project with speed and cost efficiency.

Core Capabilities

  • IMU-Based Tilt Compensation: Enables fast, safe measurement without needing to level the pole. Perfect for hard-to-reach points like fence lines, building corners, or riverbanks.
  • Triple-Frequency, Z-Blade GNSS Engine: Provides enhanced signal tracking even in difficult conditions (trees, urban canyons) with built-in ionospheric error mitigation.
  • CenterPoint® RTX Compatibility: Achieve RTK-level precision globally without relying on base stations or networks.

Ruggedness & Workflow

  • Ultra-Rugged Design (IP68 Rated): Durable in extreme conditions: dust, moisture, cold, heat—so your SP100 keeps running in harsh field environments.
  • Flexible Configurations & Interfaces: The SP100BRO setup includes integrated radio, Bluetooth, WiFi, and multiple GNSS constellations (GPS, Galileo, GLONASS, BeiDou, etc.). It can function as rover, base station, or both; optional modes like heading and moving base are available.
  • Long-Lasting Battery & On-board Memory: Removes interruptions. Standard battery life covers many hours of fieldwork; internal storage (≈ 9 GB) helps you store more data locally.

Why Choose the SP100BRO Configuration?

The SP100 Configuration Level, such as SP100BRO, lets you select precisely the hardware and features you need. This means you get the most cost-efficient version of the SP100 without extras you won’t use. Whether your applications demand maximum ruggedness, advanced correction services, or specific GNSS channel support, SP100BRO is built to adapt.

With SP100BRO, you benefit from:

  • High-precision positioning and tilt compensation for safer, faster fieldwork
  • Reliable performance in challenging conditions
  • Flexible licensing and upgrade paths as your surveying work evolves
